11.1. Overview of SfS

ASP provides a tool, named sfs (Section 16.67), that can improve the level of detail of DEMs created by ASP or any other source using shape-from-shading (SfS). This program takes as input one or more images and cameras, a DEM at roughly the same resolution as the images, and returns a refined DEM.

The modeling approach is described in [AB18].

The sfs program works with any cameras supported by ASP, for Earth and other planets. The option --sun-angles can be used to to specify the Sun information for each image. For ISIS and CSM cameras, if this option is not set, the needed information is read from the camera files.

The sfs program can model position-dependent albedo (Section 11.8), exposure values for each camera, atmospheric haze, shadows in the input images, and regions in the DEM occluded from the Sun.

A program named parallel_sfs is provided (Section 16.51) that parallelizes sfs using multiple processes (optionally on multiple machines) by splitting the input DEM into tiles with padding, running sfs on each tile, and then blending the results. It was used to create DEMs of dimensions 10,000 by 10,000 pixels.

11.2. Examples

• A single image example with LRO NAC Lunar images (Section 11.7).

• A small example with multiple LRO NAC images (Section 11.9).

• Large-scale SfS with LRO NAC images (Section 11.10).

• Kaguya Lunar images (Section 8.14.5).

• Earth example, with atmospheric haze (Section 11.12).

• CTX Mars example (Section 11.13).

11.3. Limitations

This program is experimental. It assumes a certain reflectance model of the surface, which may or may not be accurate for a given setting.

sfs is very sensitive to errors in the position and orientation of the cameras, the accuracy of the initial DEM, and to the value of the weights it uses.

sfs has been tested thoroughly with Lunar LRO NAC datasets. As can be seen below, sfs returns reasonable results on the Moon as far as 85 degrees and even 89.6 degrees South.

SfS was shown to give reasonable results with CTX Mars images (Section 11.13). The improvement is real, but somewhat modest.

An example for Earth is Section 11.12, that shows that our program can give plausible results.

It is suggested to invoke this tool with a terrain model that is already reasonably accurate, and with images with diverse illumination conditions registered to it, when sfs can do fine-level refinements.

The program was employed successfully for Mercury ([BMB+23]). Applications for the Moon are described in [HIK+25] and [Boa24].

11.4. Mathematical model

This program works by minimizing the cost function

\[\begin{split}\label{cost} \int\!\! \int \! \sum_k \left[ I_k(\phi(x, y)) - T_k A(x, y) R_k(\phi(x, y)) - H_k\right]^2\, \\ + \mu \left\|\nabla^2 \phi(x, y) \right\|^2 + \lambda \left[ \phi(x, y) - \phi_0(x, y) \right]^2 \, dx\, dy.\end{split}\]

Here, \(I_k(\phi(x, y))\) is the \(k\)-th camera image interpolated at pixels obtained by projecting into the camera 3D points from the terrain \(\phi(x, y)\), \(T_k\) is the \(k\)-th image exposure, \(A(x, y)\) is the per-pixel normalized albedo, \(R_k(\phi(x, y))\) is the reflectance computed from the terrain for \(k\)-th image, \(\left\|\nabla^2 \phi(x, y) \right\|^2\) is the sum of squares of all second-order partial derivatives of \(\phi\).

The term \(H_k\) is the atmospheric haze, which is assumed to be zero for the Moon but is modeled for Earth and Mars.

The value \(\mu > 0\) is a smoothness weight, and \(\lambda > 0\) determines how close we should stay to the input terrain \(\phi_0\) (smaller \(\mu\) will show more detail but may introduce some artifacts, and smaller \(\lambda\) may allow for more flexibility in optimization but the terrain may move too far from the input).

We use either the regular Lambertian reflectance model, or the Lunar-Lambertian model [McE91], more specifically as given in [LHK06] (equations (3) and (4)). Also supported is the Hapke model, [JGL+06], [FSC+13], [Hap08], [HNS93]. Custom values for the coefficients of these models can be passed to the program.

Note that the albedo in the above expression is normalized, its nominal value is 1. The image intensity ideally equals the image exposure times albedo times reflectance, hence the image exposure absorbs any existing constant multiplier.

The exposure value for a camera is computed as the average of the image intensity divided by the average reflectance, both computed over the DEM. If the problem is parallelized using parallel_sfs, the exposures are found just once, over the entire DEM, rather than for each tile. The exposures can be optimized while solving for the DEM.

It is important to note that the default Lunar-Lambertian model may not be the right choice for other planetary bodies, hence some research may be needed to decide the correct model for your application.

11.5. How to get images

We obtain the images from http://wms.lroc.asu.edu/lroc/search (search for EDR images of type NACL and NACR).

A faster (but not as complete) interface is provided by http://ode.rsl.wustl.edu/moon/indexproductsearch.aspx. This site allows for bulk downloads, but does not permit datasets bigger than several tens of GB, so several attempts may be necessary.

The related site http://ode.rsl.wustl.edu/moon/indextools.aspx?displaypage=lolardr can provide LOLA datasets which can be used as (sparse) ground truth.

If desired to use a gridded LOLA DEM as an initial guess, see Section 11.10.

We advise the following strategy for picking images. First choose a small longitude-latitude window in which to perform a search for images. Pick two images that are very close in time and with a big amount of overlap (ideally they would have consecutive orbit numbers). A good convergence angle is expected (Section 8.1). Those images can be passed to ASP’s parallel_stereo tool to create an initial DEM. Then, search for other images close to the center of the maximum overlap of the first two images. Pick one or more of those, ideally with different illumination conditions than the first two. Those (together with one of the first two images) can be used for SfS.

To locate the area of spatial overlap, the images can be map-projected (either with cam2map with a coarse resolution) or with mapproject, using for example the LOLA DEM as the terrain to project onto, or the DEM obtained from running parallel_stereo on those images. Then the images can be overlaid as georeferenced images in stereo_gui (Section 16.70). A good sanity check is to examine the shadows in various images. If they point in different directions in the images and perhaps also have different lengths, that means that illumination conditions are different enough, which will help constrain the sfs problem better.

An example for how to download and prepare the datasets is shown in Section 11.7.

11.6. ISIS vs CSM models

CSM (Section 8.12) is a modern sensor model which can be used with multiple threads, and can be on the order of 7-15 times faster than the ISIS .cub model it is meant to replace, as benchmarked with mapproject, bundle_adjust, and sfs.

Given a set of ISIS .cub camera files it is desired to run SfS on, it is strongly suggested to convert them to corresponding CSM models as described in Section 8.12.2.1.

If the CSM models have no more than 0.5 pixels of discrepancy when compared to the .cub cameras, as validated with cam_test (Section 16.9), use the CSM models instead of the ISIS ones in all the tools outlined below (parallel_bundle_adjust, parallel_stereo, mapproject, and parallel_sfs). The SfS DEMs obtained with these two methods were observed to differ by several millimeters at most, on average, but an evaluation may be necessary for your particular case.

This will work only for the datasets with original dimensions, so not together with the reduce or crop commands.

Any of the commands further down which only use .cub files can be adapted for use with CSM cameras by appending to those commands the CSM .json cameras in the same order as the .cub files, from which only the image information will then be used, with the camera information coming from the .json files.

For example, if sfs is run with an ISIS camera as:

sfs --use-approx-camera-models\
 --crop-input-images          \
  -i input_dem.tif image.cub  \
  -o sfs_isis/run

then, the corresponding command using the CSM model will be:

sfs --crop-input-images \
  -i input_dem.tif      \
  image.cub image.json  \
  -o sfs_csm/run

The option --use-approx-camera-models is no longer necessary as the CSM model is fast enough. It is however suggested to still keep the --crop-input-images option.

Bundle adjustment saves CSM camera files with adjustments already applied to them, so the resulting cameras can be used without the --bundle-adjust-prefix option.

11.7. SfS at 1 meter/pixel using a single image

In both this and the next sections we will work with LRO NAC images taken close to the Lunar South Pole, at a latitude of 85 degrees South (the tool was tested on equatorial regions as well). We will use four images, M139939938LE, M139946735RE, M173004270LE, and M122270273LE.

11.7.1. Data preparation

Fetch the images:

wget http://lroc.sese.asu.edu/data/LRO-L-LROC-2-EDR-V1.0/LROLRC_0005/DATA/SCI/2010267/NAC/M139939938LE.IMG
wget http://lroc.sese.asu.edu/data/LRO-L-LROC-2-EDR-V1.0/LROLRC_0005/DATA/SCI/2010267/NAC/M139946735RE.IMG
wget http://lroc.sese.asu.edu/data/LRO-L-LROC-2-EDR-V1.0/LROLRC_0009/DATA/SCI/2011284/NAC/M173004270LE.IMG
wget http://lroc.sese.asu.edu/data/LRO-L-LROC-2-EDR-V1.0/LROLRC_0002/DATA/MAP/2010062/NAC/M122270273LE.IMG

We convert these to ISIS cubes, initialize the SPICE kernels, and perform radiometric calibration and echo correction. That is explained in Section 8.7.4.

It can be convenient to create preview versions of these datasets, at 10% of original resolution, for the purpose of inspection. That is done as follows:

f=M139939938LE
reduce from = ${f}.cal.echo.cub to = ${f}.cal.echo.sub10.cub  \
  sscale = 10 lscale = 10

For simplicity, we create we create shorter aliases for these images:

ln -s M139939938LE.cal.echo.cub A.cub
ln -s M139946735RE.cal.echo.cub B.cub
ln -s M173004270LE.cal.echo.cub C.cub
ln -s M122270273LE.cal.echo.cub D.cub

11.7.2. Initial DEM creation

The first step is to run bundle adjustment (Section 16.5) and stereo (Section 16.52) to create an initial guess DEM. We picked for this the first two of these images. These form a stereo pair (Section 8.1), that is, they have a reasonable baseline and sufficiently close times of acquisition hence very similar illuminations). These conditions are necessary to obtain a good stereo result.

Below we assume CSM cameras are used (Section 11.6). Otherwise the .json files should be omitted.

bundle_adjust A.cub B.cub A.json B.json   \
  --num-iterations 100 -o ba/run

parallel_stereo                           \
  --left-image-crop-win 0 7998 2728 2696  \
  --right-image-crop-win 0 9377 2733 2505 \
  --stereo-algorithm asp_mgm              \
  --subpixel-mode 9                       \
  --bundle-adjust-prefix ba/run           \
  A.cub B.cub A.json B.json               \
  run_full1/run

See Section 6.1 for a discussion about various speed-vs-quality choices in stereo. See Section 6.1.7 about handling artifacts in steep terrain.

The crop windows above were chosen with stereo_gui (Section 16.70).

Next we create a DEM. We use the stereographic projection since this dataset is very close to the South Pole. Normally a projection centered close to area of interest is suggested (Section 16.57.1).

point2dem -r moon --stereographic --proj-lon 0  \
  --proj-lat -90 run_full1/run-PC.tif

It is very important that the resolution of the DEM be comparable to the ground sample distance (GSD) of the images. This will ensure optimal sampling.

SfS can only be run on a DEM with valid data at each grid point. The DEM obtained above should be opened in stereo_gui, and the bounds of a clip having only valid data should be determined (Section 16.70.8). Such a clip is cropped using gdal_translate (Section 16.25) as:

gdal_translate -projwin -15471.9 150986 -14986.7 150549  \
  run_full1/run-DEM.tif run_full1/run-crop-DEM.tif

This creates a DEM clip of size 456 × 410 pixels.

The point2dem program auto-determines the DEM resolution (grid size), as an estimate of the image ground sample distance (GSD). This is the optimal resolution to run SfS at. If creating your input DEM some other way, it is strongly suggested to use a DEM grid size not too different from the GSD, in order to get the best quality. The mapproject program (Section 16.42), when invoked with no input grid size, computes the grid size as the image GSD, and that value can then be used when creating the input SfS DEM.

If this DEM has holes, those can be filled in dem_mosaic (Section 16.20.2.9).

The dem_mosaic program can also apply some blur to attenuate big artifacts (Section 16.20.2.6). Use, for example, --dem-blur-sigma 2. Note that sfs has a smoothness term which should take care of very small imperfections in the input.

See Section 11.10.2 for how to use a third-party DEM as input to SfS. Then, alignment of the cameras to that DEM is needed. This is a multi-step process, outlined in detail in Section 11.10.

11.7.3. Running SfS

Then we run sfs on this clip (for a larger clip parallel_sfs should be used instead, see Section 16.51):

sfs -i run_full1/run-crop-DEM.tif       \
  A.cub A.json                          \
  --use-approx-camera-models            \
  --crop-input-images                   \
  --reflectance-type 1                  \
  --smoothness-weight 0.08              \
  --initial-dem-constraint-weight 0.001 \
  --max-iterations 10                   \
  -o sfs_ref1/run

The smoothness weight is a parameter that needs tuning. If it is too small, SfS will return noisy results, if it is too large, too much detail will be blurred. One can experiment with values between 0.01 and 100,000 with a factor of 10 to find this weight, and then refine it in smaller steps. A discussion of this term is in [LSAM21].

Here we used the Lunar-Lambertian model. The meaning of the other sfs options can be looked up in Section 16.67.

Normally 5-10 iterations is enough, even when convergence is not reached, as the solution usually improves quickly at first and only very fine refinements happen later.

The value of --initial-dem-constraint-weight is best set to something very small when the initial DEM is not very reliable, as otherwise defects from it can be inherited by the SfS result. Otherwise a value between 0.001 and 0.002 may be good enough. Use a higher value when the input DEM is reliable but the reflectance model is not.

See Section 11.8 for modeling of albedo. Shadow thresholds may be needed to avoid artifacts in shadow. See Section 11.9.2 for a potential solution to flat crater bottoms in areas in shadow.

In the next sections, where SfS will be done with multiple images, more parameters which can control the quality of the result will be explored.

See Section 16.67.5 for where sfs stores its outputs.

See Section 8.14.5 for an example of running SfS on Kaguya TC images.

11.7.4. Inspecting the results

We show the results of running this program in Fig. 11.1. The left-most figure is the hill-shaded original DEM, which was obtained by running the hillshade program (Section 16.28):

hillshade --azimuth 300 --elevation 20 run_full1/run-crop-DEM.tif \
  -o run_full1/run-crop-hill.tif

The second image is the hill-shaded DEM obtained after running sfs for 10 iterations.

The third image is, for comparison, the map-projection of A.cub onto the original DEM, obtained via the command:

mapproject --tr 1 run_full1/run-crop-DEM.tif A.cub A_map.tif \
  --tile-size 1024

(For small DEMs one can use a smaller --tile-size to start more subprocesses in parallel to do the mapprojection. That is not needed with CSM cameras as then mapproject is multithreaded.)

The fourth image is the colored absolute difference between the original DEM and the SfS output, obtained by running geodiff (Section 16.26):

geodiff --absolute sfs_ref1/run-DEM-final.tif \
  run_full1/run-crop-DEM.tif -o out
colormap --min 0 --max 2 out-diff.tif

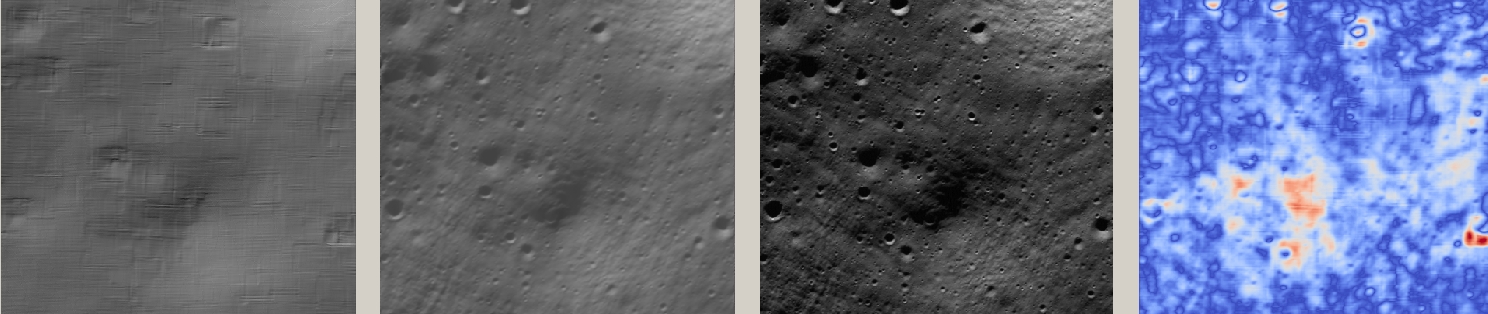

Fig. 11.1 An illustration of sfs. The images are, from left to right, the original hill-shaded DEM, the hill-shaded DEM obtained from sfs, the image A.cub map-projected onto the original DEM, and the absolute difference of the original and final DEM, where the brightest shade of red corresponds to a 2 meter height difference.

It can be seen that the optimized DEM provides a wealth of detail and looks quite similar to the input image. It also did not diverge significantly from the input DEM. We will see in the next section that SfS is in fact able to make the refined DEM more accurate than the initial guess (as compared to some known ground truth), though that is not guaranteed, and most likely did not happen here where just one image was used.

11.8. Albedo modeling with one or more images

When using a single input image, it may be preferable to avoid floating (solving for) the albedo (option --float-albedo), hence to have it set to 1 and kept fixed. The reason for that is because for a single image it is not possible to distinguish if a bright image area comes from lighter-colored terrain or from having an inclination which makes it face the Sun more.

If desired to float the albedo with one image, it is suggested to use a higher value of --initial-dem-constraint-weight to constrain the terrain better in order to make albedo determination more reliable. The albedo can be prevented from changing too much if the --albedo-constraint-weight parameter is used.

Albedo should be floated with two or more images, if albedo variations are clearly visible, and if those images have sufficiently different illumination conditions, as then the albedo and slope effects can be separated more easily. For images not having obvious albedo variations it may be prudent to keep the albedo fixed at the nominal value of 1.

It is important to use appropriate values for the --shadow-thresholds parameter, as otherwise regions in shadow will be interpreted as lit terrain with a pitch-black color, and the computed albedo and terrain will have artifacts.

See Section 16.67.5 for the produced file having the albedo.

An example showing modeling of albedo (and atmospheric haze) is in Section 11.12.

11.9. SfS with multiple images in the presence of shadows

In this section we will run sfs with multiple images. We would like to be able to see if SfS improves the accuracy of the DEM rather than just adding detail to it. We evaluate this using the following (admittedly imperfect) approach. We reduce the resolution of the original images by a factor of 10, run stereo with them, followed by SfS using the stereo result as an initial guess and with the resampled images. As ground truth, we create a DEM from the original images at the higher resolution of 1 meter/pixel, which we bring closer to the initial guess for SfS using pc_align. We would like to know if running SfS brings us even closer to this “ground truth” DEM.

The most significant challenge in running SfS with multiple images is that shape-from-shading is highly sensitive to errors in camera position and orientation. It is suggested to bundle-adjust the cameras first (Section 16.5).

It is important to note that bundle adjustment may fail if the images have very different illumination, as it will not be able to find matches among images. A solution to this is discussed in Section 11.10, and it amounts to bridging the gap with more images of intermediate illumination.

It is strongly suggested that, when doing bundle adjustment, the images should be specified in the order given by Sun azimuth angle (see Section 11.10.5). The images should also be mapprojected and visualized (in the same order), to verify that the illumination is changing gradually.

To make bundle adjustment and stereo faster, we first crop the images, such as shown below (the crop parameters can be determined via stereo_gui, Section 16.70).

crop from = A.cub to = A_crop.cub sample = 1 line = 6644 \
  nsamples = 2192 nlines = 4982
crop from = B.cub to = B_crop.cub sample = 1 line = 7013 \
    nsamples = 2531 nlines = 7337
crop from = C.cub to = C_crop.cub sample = 1 line = 1    \
  nsamples = 2531 nlines = 8305
crop from = D.cub to = D_crop.cub sample = 1 line = 1    \
  nsamples = 2531 nlines = 2740

Note that manual cropping is not practical for a very large number of images. In that case, it is suggested to mapproject the input images onto some smooth DEM whose extent corresponds to the terrain to be created with sfs (with some extra padding), then run bundle adjustment with mapprojected images (option --mapprojected-data, illustrated in Section 11.10) and stereo also with mapprojected images (Section 6.1.7). This will not only be automated and faster, but also more accurate, as the inputs will be more similar after mapprojection.

Bundle adjustment (Section 16.5) and stereo happens as follows:

bundle_adjust A_crop.cub B_crop.cub C_crop.cub D_crop.cub \
  --num-iterations 100 --save-intermediate-cameras        \
  --ip-per-image 20000 --max-pairwise-matches 2000        \
  --min-matches 1 --num-passes 1 -o run_ba/run
parallel_stereo A_crop.cub B_crop.cub run_full2/run       \
  --subpixel-mode 3 --bundle-adjust-prefix run_ba/run

One can try using the stereo option --nodata-value (Section 17) to mask away shadowed regions, which may result in more holes but less noise in the terrain created from stereo.

See Section 6.1 for a discussion about various speed-vs-quality choices, and Section 6.1.7 about handling artifacts in steep terrain. Consider using CSM cameras instead of ISIS cameras (Section 11.6).

The resulting cloud, run_full2/run-PC.tif, will be used to create the “ground truth” DEM. As mentioned before, we’ll in fact run SfS with images subsampled by a factor of 10. Subsampling is done by running the ISIS reduce command:

for f in A B C D; do
  reduce from = ${f}_crop.cub to = ${f}_crop_sub10.cub \
    sscale = 10 lscale = 10
done

We run bundle adjustment and parallel_stereo with the subsampled images using commands analogous to the above. It was quite challenging to find match points, hence the --mapprojected-data option in bundle_adjust was used, to find interest matches among mapprojected images. The process went as follows:

# Prepare mapprojected images (see note in the text below)
parallel_stereo A_crop_sub10.cub B_crop_sub10.cub \
  --subpixel-mode 3 run_sub10_noba/run
point2dem -r moon --tr 10 --stereographic         \
  --proj-lon 0 --proj-lat -90                     \
  run_sub10_noba/run-PC.tif
for f in A B C D; do
  mapproject run_sub10_noba/run-DEM.tif --tr 10   \
    ${f}_crop_sub10.cub ${f}_sub10.map.noba.tif
done

# Run bundle adjustment
bundle_adjust A_crop_sub10.cub B_crop_sub10.cub     \
  C_crop_sub10.cub D_crop_sub10.cub --min-matches 1 \
  --num-iterations 100 --save-intermediate-cameras  \
  -o run_ba_sub10/run --ip-per-image 20000          \
  --max-pairwise-matches 2000 --overlap-limit 200   \
  --match-first-to-last --num-passes 1              \
  --mapprojected-data                               \
  "$(ls [A-D]_sub10.map.noba.tif) run_sub10_noba/run-DEM.tif"

It is suggested to use above a DEM not much bigger than the eventual area of interest, otherwise interest points which are far away may be created. While that may provide robustness, in some occasions, given that LRO NAC images are very long and can have jitter, interest points far away could actually degrade the quality of eventual registration in the desired smaller area.

The same resolution should be used for both mapprojected images (option --tr), and it should be similar to the ground sample distance of these images.

The option --mapprojected-data assumes that the images have been mapprojected without bundle adjustment.

The option --max-pairwise-matches in bundle_adjust should reduce the number of matches to the set value, if too many were created originally.

The option --overlap-limit reduces the number of subsequent images to be matched to the current one to this value. For a large number of images consider using the option --auto-overlap-params which will find which images overlap.

Run stereo and create a DEM:

parallel_stereo A_crop_sub10.cub B_crop_sub10.cub   \
  run_sub10/run --subpixel-mode 3                   \
 --bundle-adjust-prefix run_ba_sub10/run
 point2dem -r moon --tr 10 --stereographic          \
    --proj-lon 0 --proj-lat -90 run_sub10/run-PC.tif

This will create a point cloud named run_sub10/run-PC.tif and a DEM run_sub10/run-DEM.tif.

It is strongly suggested to mapproject the bundle-adjusted images onto this DEM and verify that the obtained images agree:

for f in A B C D; do
   mapproject run_sub10/run-DEM.tif               \
     ${f}_crop_sub10.cub ${f}_sub10.map.yesba.tif \
     --bundle-adjust-prefix run_ba_sub10/run
 done
 stereo_gui --use-georef --single-window *yesba.tif

We’ll bring the “ground truth” point cloud closer to the initial guess for SfS using pc_align:

pc_align --max-displacement 200 run_full2/run-PC.tif \
  run_sub10/run-PC.tif -o run_full2/run              \
  --save-inv-transformed-reference-points

This step is extremely important. Since we ran two bundle adjustment steps, and both were without ground control points, the resulting clouds may differ by a large translation, which we correct here. Hence we would like to make the “ground truth” terrain aligned with the datasets on which we will perform SfS.

Next we create the “ground truth” DEM from the aligned high-resolution point cloud, and crop it to a desired region:

point2dem -r moon --tr 10 --stereographic  \
  --proj-lon 0 --proj-lat -90              \
  run_full2/run-trans_reference.tif
gdal_translate                             \
  -projwin -15540.7 151403 -14554.5 150473 \
  run_full2/run-trans_reference-DEM.tif    \
  run_full2/run-crop-DEM.tif

We repeat the same steps for the initial guess for SfS:

point2dem -r moon --tr 10 --stereographic  \
  --proj-lon 0 --proj-lat -90              \
  run_sub10/run-PC.tif
gdal_translate                             \
  -projwin -15540.7 151403 -14554.5 150473 \
  run_sub10/run-DEM.tif                    \
  run_sub10/run-crop-DEM.tif

Since our dataset has many shadows, we found that specifying the shadow thresholds for the tool improves the results. The thresholds can be determined using stereo_gui. This can be done by turning on threshold mode from the GUI menu, and then clicking on a few points in the shadows. The largest of the determined pixel values will be the used as the shadow threshold. Then, the thresholded images can be visualized/updated from the menu as well, and this process can be iterated. See Section 16.70.14 for more details. We also found that for LRO NAC a shadow threshold value of 0.003 works well enough usually.

Alternatively, the otsu_threshold tool (Section 16.48) can be used to find the shadow thresholds automatically. It can overestimate them somewhat.

Then, we run sfs:

sfs -i run_sub10/run-crop-DEM.tif                    \
  A_crop_sub10.cub C_crop_sub10.cub D_crop_sub10.cub \
  -o sfs_sub10_ref1/run --threads 4                  \
  --smoothness-weight 0.12                           \
  --initial-dem-constraint-weight 0.001              \
  --reflectance-type 1 --use-approx-camera-models    \
  --max-iterations 5  --crop-input-images            \
  --bundle-adjust-prefix run_ba_sub10/run            \
  --blending-dist 10 --allow-borderline-data         \
  --min-blend-size 20                                \
  --shadow-thresholds '0.00162484 0.0012166 0.000781663'

Varying the exposures and haze is not suggested in a first attempt.

Note the two “blending” parameters, those help where there are seams or light-shadow boundaries. The precise numbers may need adjustment. In particular, decreasing --min-blend-size may result in more seamless terrain models at the expense of some erosion.

One should experiment with floating the albedo (option --float-albedo) if noticeable albedo variations are seen in the images. See Section 11.8 for a longer discussion.

After this command finishes, we compare the initial guess to sfs to the “ground truth” DEM obtained earlier and the same for the final refined DEM using geodiff as in the previous section. Before SfS:

geodiff --absolute run_full2/run-crop-DEM.tif \
  run_sub10/run-crop-DEM.tif -o out
gdalinfo -stats out-diff.tif | grep Mean=

and after SfS:

geodiff --absolute run_full2/run-crop-DEM.tif \
  sfs_sub10_ref1/run-DEM-final.tif -o out
gdalinfo -stats out-diff.tif | grep Mean=

The mean error goes from 2.64 m to 1.29 m, while the standard deviation decreases from 2.50 m to 1.29 m.

See Fig. 11.3 for an illustration. Visually the refined DEM looks more detailed. The same experiment can be repeated with the Lambertian reflectance model (reflectance-type 0), and then it is seen that it performs a little worse.

We also show in this figure the first of the images used for SfS, A_crop_sub10.cub, map-projected upon the optimized DEM. Note that we use the previously computed bundle-adjusted cameras when map-projecting, otherwise the image will show as shifted from its true location:

mapproject sfs_sub10_ref1/run-DEM-final.tif A_crop_sub10.cub   \
  A_crop_sub10_map.tif --bundle-adjust-prefix run_ba_sub10/run

See Section 11.10 for a large-scale example.

11.9.1. Handling borderline areas

With the option --allow-borderline-data, sfs is able to do a better job at resolving the terrain at the border of regions that have no lit pixels in any images. It works by not letting the image blending weights decay to 0 at at this boundary, which is normally the case when --blending-dist is used. These weights still decrease to 0 at other image boundaries.

In the example in Fig. 11.2, in some input images the top terrain portion was lit, and in some the bottom portion. With this option, as it can be seen, the blur in the transition zone is removed. The craters are still too shallow, but that is a known issue with weak illumination, and something to to be addressed at a future time.

The value of --blending-dist should be set to 10 or so. A smaller value may result in seams. Increasing this will allow the seams to be attenuated, but may result in more erosion.

The tool sfs_blend tool (Section 16.68) can be used to tune the areas in complete shadow after doing SfS.

Fig. 11.2 The SfS result without option --allow-borderline-data (left), with it (center), and the max-lit mosaic (right). It can be seen in the max-lit mosaic that the illumination direction (position of lit crater rim) is quite different in the top and bottom halves (which appear to be separated by a horizontal ridge), which was causing issues for the algorithm.

11.9.2. Handling lack of data in shadowed crater bottoms

As seen in Fig. 11.3, sfs makes the crater bottoms flat in shadowed areas, where is no data.

A very experimental way of fixing this is to add a new curvature term in the areas in shadow, of the form

\[\label{curvature} w \left(\frac{\partial^2 \phi}{\partial x^2} + \frac{\partial^2 \phi}{\partial y^2} - c\right)\]

to the SfS formulation in Section 11.4. As an example, running:

sfs -i run_sub10/run-crop-DEM.tif                      \
    A_crop_sub10.cub C_crop_sub10.cub D_crop_sub10.cub \
    -o sfs_sub10_v2/run                                \
    --threads 4 --smoothness-weight 0.12               \
    --max-iterations 5                                 \
    --initial-dem-constraint-weight 0.001              \
    --reflectance-type 1                               \
    --use-approx-camera-models                         \
    --crop-input-images                                \
    --bundle-adjust-prefix run_ba_sub10/run            \
    --shadow-thresholds '0.002 0.002 0.002'            \
    --curvature-in-shadow 0.15                         \
    --curvature-in-shadow-weight 0.1                   \
    --lit-curvature-dist 10                            \
    --shadow-curvature-dist 5

will produce the terrain in Fig. 11.4.

The curvature c is given by option --curvature-in-shadow, its weight w by --curvature-in-shadow-weight, and the parameters --lit-curvature-dist and --shadow-curvature-dist help gradually phase in this term at the light-shadow interface, this many pixels inside each corresponding region.

Some tuning of these parameters should be done depending on the resolution. They could be made larger if no effect is seen.

Fig. 11.3 An illustration of sfs. The images are, from left to right, the hill-shaded initial guess DEM for SfS, the hill-shaded DEM obtained from sfs, the “ground truth” DEM, and the first of the images used in SfS map-projected onto the optimized DEM.

Fig. 11.4 An illustration of adding a curvature term to the SfS cost function, per Section 11.9.2. It can be seen that, compared to the earlier figure, the crater bottom is now curved, rather than flat, but more modeling is needed to ensure a seamless transition.

11.10. Large-scale SfS

SfS has been run successfully on a site close to the Lunar South Pole, at around 85.5 degrees South. Its size was 14336 x 11008 pixels, at 1 m/pixel. It used 814 LRO NAC images for bundle adjustment and 420 of those for SfS. The shadows on the ground were observed to make a full 360 degree loop. A seamless terrain was created (see the LPSC poster).

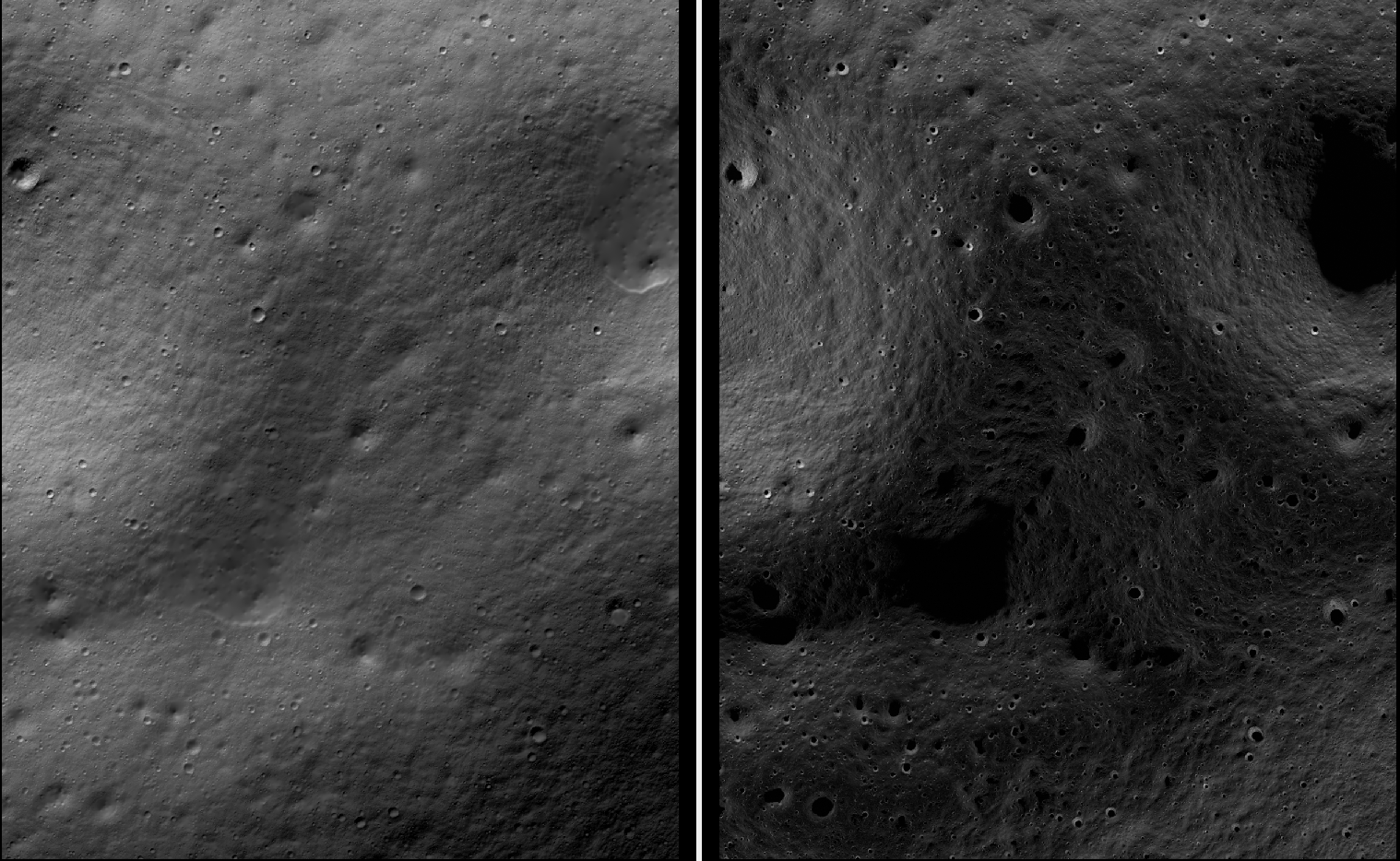

Fig. 11.5 A portion of a large-scale terrain produced with SfS showing a challenging area with very diverse illumination around some permanently-shadowed regions. Left: hillshaded SfS terrain. Right: max-lit mosaic. The quality of the produced terrain gracefully degrades as illumination gets worse.

11.10.1. Challenges

The challenges encountered were that the shadows were extensive and varied drastically from image to image, and some portions of the terrain showed up only in some images. All this made it difficult to register the images to each other and to the ground.

We solved this by doing bundle adjustment with a large number of images that were sorted by illumination conditions. We made sure that there exist images close to each other in the image list that overlap and have similar enough illumination, which resulted in all images being tied together.

The user is strongly cautioned that the difficulty of getting things right and figuring out what went wrong greatly increases with dataset complexity.

It is strongly suggested to first try SfS on a site of size perhaps 2000 x 2000 pixels, with a dozen carefully inspected images with slowly varying illumination, and having at least one stereo pair among them (Section 8.1) that can be used for alignment to the ground.

If happy with the results, more images can be added and the site size increased.

11.10.2. The initial terrain

A LOLA DEM was used as an initial guess terrain for SfS and as reference ground truth. A mosaic of several stereo DEMs with bundle-adjusted cameras can be used as well.

A Lunar South Pole 87-90 degree latitude DEM at 5 m/pixel is at:

https://pgda.gsfc.nasa.gov/products/81

Some lunar DEMs at 10 m/pixel and other resolutions, for latitude between 83 and 90 degrees South, are available at:

https://pgda.gsfc.nasa.gov/products/90

The site:

https://core2.gsfc.nasa.gov/PGDA/LOLA_5mpp

has LOLA DEMs at 5 m/pixel for a few locations.

A 20 meter/pixel LOLA product, which is rather low in resolution, but covers a significant portion of the South Pole, is available at:

http://imbrium.mit.edu/DATA/LOLA_GDR/POLAR/IMG/LDEM_80S_20M.IMG
http://imbrium.mit.edu/DATA/LOLA_GDR/POLAR/IMG/LDEM_80S_20M.LBL

11.10.3. Preprocessing the terrain

The higher-resolution DEMs mentioned above only need regridding.

The LDEM_80S_20M IMG and LBL files can be fetched with wget. Then, this dataset should be converted to a .cub file as:

pds2isis from = LDEM_80S_20M.LBL to = ldem_80s_20m.cub

The heights for this DEM need to be multiplied by 0.5, per the information in the LBL file. We do that with image_calc (Section 16.34):

image_calc -c "0.5*var_0" ldem_80s_20m.cub -o ldem_80s_20m_scale.tif

Resample the DEM to 1 m/pixel using gdalwarp (Section 16.25), creating a DEM named ref_dem.tif:

gdalwarp -overwrite -r cubicspline -tr 1 1              \
  -co COMPRESSION=LZW -co TILED=yes -co INTERLEAVE=BAND \
  -co BLOCKXSIZE=256 -co BLOCKYSIZE=256                 \
  -te -7050.5 -10890.5 -1919.5 -5759.5                  \
  ldem_80s_20m_scale.tif ref_dem.tif

The values passed to -te are the bounds of the area of interest. See a discussion about them below.

The DEM grid size should be not too different from the ground sample distance (GSD) of the images, for optimal results. That one can be found with mapproject (Section 16.42). For LRO NAC images, use 1 m / pixel.

It is suggested to use a stereographic projection. It should be a polar one, if around the poles, or otherwise centered at the area of interest. For example, set:

proj="+proj=stere +lat_0=-90 +lon_0=0 +R=1737400 +units=m +no_defs"

then run gdalwarp with the additional option -t_srs "$proj".

The interpolated DEM was created with bicubic spline interpolation, which is preferable to the default nearest neighbor interpolation, and it was saved internally using blocks of size 256 x 256, which ASP handles better than the GDAL default with each block as tall or wide as a row or column.

Inspect this DEM with stereo_gui (Section 16.70) in hillshade mode. Any spikes or other artifacts should be blurred, such as by running:

dem_mosaic --dem-blur-sigma 2 ref_dem.tif -o ref_blur.tif

Any holes can also be filled dem_mosaic (Section 16.20.2.9, Section 16.20.2.8). A subsequent blur with a sigma of 2 pixels is suggested (Section 16.20.2.6).

See Section 11.7.2 for how to create an initial DEM using stereo. A stereo DEM can also be blended with the LOLA DEM using dem_mosaic (after alignment, Section 11.10.9).

11.10.4. Terrain bounds

Later when we mapproject images onto this DEM, those will be computed at integer multiples of the grid size, with each ground pixel centered at a grid point. Given that the grid size is 1 m, the extent of those images as displayed by gdalinfo will have a fractional value of 0.5.

The sfs_blend program will fail later unless the resampled initial DEM also has this property, as it expects a one-to-one correspondence between mapprojected images and the ground. Hence, gdalwarp was used earlier with the -te option, with the bounds having a fractional part of 0.5. Note that the bounds passed to -te are in the order:

xmin, ymin, xmax, ymax

Ensure the min and max values are not swapped, as gdalwarp will not give a warning if they are, but the resulting DEM will be incorrect.

The dem_mosaic program (Section 16.20) can be used to automatically compute the bounds of a DEM or orthoimage and change them to integer multiples of pixel size. It can be invoked, for example, as:

dem_mosaic --tr 1 --tap input.tif -o output.tif

This will use bilinear interpolation.

11.10.5. Image selection and sorting by illumination

By far the hardest part of this exercise is choosing the images. We downloaded up to 1,400 of them, as described in Section 11.5, given the desired longitude-latitude bounds. The PDS .IMG files were converted to ISIS .cub cameras as in Section 11.7, and they were mapprojected onto the reference DEM, initially at a lower resolution to get a preview of things (Section 11.7.4).

It is very strongly recommended to use the CSM camera models instead of ISIS models (Section 11.6).

Inspection of a large number of images and choosing those that have valid pixels in the area of interest can be very arduous. To make this easier, we make use of the reporting facility of dem_mosaic (Section 16.20) when invoked with the option --block-max, with a large value of --block-size (larger than the image size), and using the --t_projwin option to specify the region of interest (in stereo_gui one can find this region by selecting it with Control-Mouse).

When the mosaicking tool runs, the sum of pixels in the current region for each image will be printed to the screen. Images with a positive sum of pixels are likely to contribute to the desired region. Example:

dem_mosaic --block-max --block-size 10000 --threads 1   \
  --t_projwin -7050.500 -10890.500 -1919.500 -5759.500  \
  M*.map.lowres.tif -o tmp.tif | tee pixel_sum_list.txt

Eliminate the images that are not relevant to the area. Having them in impacts reliability and performance.

The obtained subset of images must be sorted by illumination conditions, that is, the Sun azimuth, measured from true North. This angle is printed when running sfs with the --query option on the .cub files. Here is an example:

M114859732RE.cal.echo.cub       73.1771
M148012947LE.cal.echo.cub       75.9232
M147992619RE.cal.echo.cub       78.7806
M152979020RE.cal.echo.cub       96.895
M117241732LE.cal.echo.cub       97.9219
M152924707RE.cal.echo.cub       104.529
M150366876RE.cal.echo.cub       104.626
M152897611RE.cal.echo.cub       108.337
M152856903RE.cal.echo.cub       114.057
M140021445LE.cal.echo.cub       121.838
M157843789LE.cal.echo.cub       130.831
M157830228LE.cal.echo.cub       132.74
M157830228RE.cal.echo.cub       132.74
M157809893RE.cal.echo.cub       135.604
M139743255RE.cal.echo.cub       161.014
M139729686RE.cal.echo.cub       162.926
M139709342LE.cal.echo.cub       165.791
M139695762LE.cal.echo.cub       167.704
M142240314RE.cal.echo.cub       168.682
M142226765RE.cal.echo.cub       170.588
M142213197LE.cal.echo.cub       172.497
M132001536LE.cal.echo.cub       175.515
M103870068LE.cal.echo.cub       183.501
M103841430LE.cal.echo.cub       187.544
M142104686LE.cal.echo.cub       187.765
M162499044LE.cal.echo.cub       192.747
M162492261LE.cal.echo.cub       193.704
M162485477LE.cal.echo.cub       194.662
M162478694LE.cal.echo.cub       195.62
M103776992RE.cal.echo.cub       196.643
M103776992LE.cal.echo.cub       196.643

(the Sun azimuth is shown on the right, in degrees).

The primary reason why registration can fail later is illumination varying too drastically between nearby images, and not being able to find matching interest points. Hence, there must be sufficient images so that the illumination conditions over the entire site change slowly as one goes down the list.

A representative subset of the produced images can be found with the program image_subset (Section 16.36). That tool must be invoked once the images have been registered to each other and to the ground, so later in the process (Section 11.10.13).

The paper [BMB+23] discusses how to automate the process of selecting images.

11.10.6. Incorporation of well-registered images

The approach outlined in the next sections consists of doing bundle adjustment, alignment, then refinement of bundle adjustment with ground constraints.

For the Lunar South Pole, a large set of well-registered cameras exists. Using them requires running spiceinit with the provided kernels, followed by creation of CSM cameras as usual.

In that case, consider first understanding the workflow below, then modify it as follows. In the first bundle adjustment, keep the subset of well-registered cameras for the given site fixed. Then, do not do alignment, but redo bundle adjustment with no fixed cameras, starting with the cameras from the first step. Lastly, run bundle adjustment with ground constraints as in the regular workflow.

The explanation is as follows. The well-registered cameras will help register the other cameras. Then alignment is not needed. However, a subsequent bundle adjustment with no fixed cameras will eliminate some minor registration issues in the well-registered cameras (which are known not to be perfect). The final bundle adjustment with the ground constraint reduces any vertical discrepancies.

11.10.7. Bundle adjustment

The parallel_bundle_adjust tool (Section 16.50) is employed to co-register the images and correct camera errors. The images must be, as mentioned earlier, ordered by Sun azimuth angle.

It is very important to have interest point matches that tie all images together. To make the determination of such matches more successful, the images were first mapprojected at 1 m/pixel (LRO NAC nominal resolution) to have them in the same perspective.

The mapprojected images must all be at the same resolution. Once images are mapprojected, the cameras used for that should not change, as that will result in incorrect results. See Section 16.70.13 for more details.

Create three lists, each being a plain text file with one file name on each line, having the input images (sorted by illumination), corresponding cameras (in .json or .cub format), and corresponding mapprojected images. Append to the last list also the input DEM that was used in mapprojection.

Run bundle adjustment:

parallel_bundle_adjust                           \
  --image-list image_list.txt                    \
  --camera-list camera_list.txt                  \
  --mapprojected-data-list mapprojected_list.txt \
  --processes 10                                 \
  --threads 8                                    \
  --ip-per-image 30000                           \
  --overlap-limit 100                            \
  --num-iterations 100                           \
  --num-passes 2                                 \
  --min-matches 1                                \
  --max-pairwise-matches 2000                    \
  --camera-weight 0                              \
  --robust-threshold 2                           \
  --tri-weight 0.05                              \
  --tri-robust-threshold 0.05                    \
  --remove-outliers-params "75.0 3.0 100 100"    \
  --save-intermediate-cameras                    \
  --match-first-to-last                          \
  --forced-triangulation-distance 100000         \
  --min-triangulation-angle 1e-10                \
  --datum D_MOON                                 \
  --nodes-list <list of computing nodes>         \
  -o ba/run

The option --overlap-limit needs a large value, but the process can take a very long time. The --auto-overlap-params option can help determine which images overlap.

The key reason for failure in this process is images not being matched to enough relevant consecutive images, or simply not having enough such images to start with.

Here more bundle adjustment iterations are desirable, but this step takes too long. A large --ip-per-image can make a difference in images with rather different different illumination conditions but it can also slow down the process a lot. Note that the value of --max-pairwise-matches was set to 2000. That should hopefully create enough matches among any two images. A higher value here will make bundle adjustment run slower and use more memory.

Towards the poles the Sun may describe a full loop in the sky, and hence the earliest images (sorted by Sun azimuth angle) may become similar to the latest ones. That is the reason above we used the option --match-first-to-last.

If having an estimate how how accurate initial camera positions are, the option --camera-position-uncertainty is suggested. If this uncertainty is is too small, it can prevent convergence. For LRO NAC, perhaps 100 - 500 m is a good value. See also Section 16.5.11.2.

Note that this invocation may run for more than a day, or even more. And it may be necessary to get good convergence. If the process gets interrupted, or the user gives up on waiting, the adjustments obtained so far can still be usable, if invoking bundle adjustment, as above, with --save-intermediate-cameras.

As before, using the CSM model can result in much-improved performance.

Here we used --camera-weight 0 and --robust-threshold 2 to give cameras which start far from the solution more chances to converge. We are very generous with outlier filtering in the option --remove-outliers-params. That will ensure that in case the solution did not fully converge, valid matches with large reprojection error are not thrown out as outliers.

A large value of --processes can result in running out of memory.

11.10.8. Validation of bundle adjustment

The file:

ba/run-final_residuals_stats.txt

should be examined. The median reprojection error per camera must be at most 1-2 pixels (the mean error could be larger). If that is not the case, bundle adjustment failed to converge. To help it, consider doing a preliminary step of bundle adjustment with --robust-threshold 5 to force the larger errors to go down, and then do a second invocation to refine the cameras with --robust-threshold 2 as earlier.

In the second invocation, either use the original cameras and with the option --input-adjustments-prefix, pointing to the latest adjustments, or use the latest optimized cameras, if in CSM format.

Reuse the match files with the option --match-files-prefix.

It is best to avoid throwing out images at this stage. More images means a higher chance that the images will be tied together. The images that have a zero count in the stats file can be thrown out.

11.10.9. Alignment to the ground

A very critical part of the process is to move from the coordinate system of the cameras to the coordinate system of the initial guess terrain in ref_dem.tif. The only reliable approach for this is to create a terrain model using stereo with some of the images and bundle-adjusted cameras produced so far, align that one to ref_dem.tif, and then apply this alignment to the cameras.

With LRO NAC images, stereo pairs may be hard to find. In addition, after the earlier step of bundle adjustment the images may already be within 10-30 meters horizontally relative to the reference LOLA DEM, as validated by mapprojection.

If it looks that the alignment is already in the ballpark, and it is tricky to find stereo pairs, or the attempt at alignment fails, consider skipping this step.

The produced SfS DEM will likely need additional alignment in either case (Section 11.10.14).

Examine the file having the stereo convergence angles for each pair of images as produced by bundle adjustment (Section 16.5.11.4). Eliminate those with a convergence angle of under 10 degrees or so, and sort the rest in decreasing number of matches (if not enough pairs left, can decrease this angle to 3 - 5 degrees).

Produce 30 - 100 stereo DEMs from the stereo pairs with non-small convergence angles. These must cover well the full site, even if there are missing areas in between. This helps with consistent alignment.

It is very important that the camera adjustments created so far are used in stereo, by passing them via --bundle-adjust-prefix. Or, with CSM cameras, can use the latest optimized cameras instead, without the --bundle-adjust-prefix option. Stereo with mapprojected images is preferable (Section 6.1.7).

So, the stereo command can look as follows:

parallel_stereo A.map.tif B.map.tif \
  ba/run-A.adjusted_state.json      \
  ba/run-B.adjusted_state.json      \
  --stereo-algorithm asp_mgm        \
  --subpixel-mode 9                 \
  run_stereo/run                    \
  ref_dem.tif

Here, ref_dem.tif is the DEM used for mapprojection. Note that the mapprojected images won’t fully agree with the DEM or each other yet, as they are not registered to the DEM, but stereo should still run fine.

When invoking point2dem on the resulting point clouds, use the same projection (--t_srs) as in the reference terrain and a grid size (--tr) of 1 meter. Inspect the triangulation error (Section 16.57). Ideally its average should not be more than 1 meter.

The created DEMs can be mosaicked with dem_mosaic (Section 16.20) as:

dem_mosaic -o stereo_mosaic.tif --dem-list stereo_dem_list.txt

It is strongly suggested to use the geodiff program (Section 16.26) to inspect how well the individual DEMs agree with their mosaic. This can help catch problems early. If most DEMs agree well with the mosaic, but some are way off, this may need investigation, or the bad ones can be thrown out, and the mosaic redone.

Overlay and inspect the produced stereo DEM mosaic and the reference DEM in stereo_gui.

Align the mosaicked DEM to the initial LOLA terrain in ref_dem.tif using pc_align (Section 16.54):

pc_align --max-displacement 500           \
  stereo_mosaic.tif ref_dem.tif           \
  --save-inv-transformed-reference-points \
  -o run_align/run

The output 50th error percentile of smallest errors as printed by this tool should be under 1-5 meters, and ideally less. Otherwise likely something is not right, and the registration of images may fail later.

The pc_align tool can be quite sensitive to the --max-displacement value. It should be somewhat larger than the total estimated translation (horizontal + vertical) among the two datasets. The option --compute-translation-only may be necessary if pc_align introduces a bogus rotation.

The resulting transformed cloud run_align/run-trans_reference.tif needs to be regridded with point2dem with the same projection and grid size as before.

This DEM should be hillshaded (Section 16.28) and overladed on top of the LOLA DEM and see if there is any noticeable shift, which would be a sign of alignment not being successful.

If no luck, and visually the misalignment looks small horizontally, alignment could be skipped, for now, and one could continue with the next step, of using a DEM constraint, to fix vertical alignment issues. After that, perhaps alignment will work better.

The geodiff tool should be used to examine any discrepancy among the two (Section 16.26), followed by colormap (Section 16.14) and inspection in stereo_gui.

If happy with the results, the alignment transform can be applied to the cameras. With CSM cameras, that goes as follows:

bundle_adjust                                             \
  --image-list ba/run-image_list.txt                      \
  --camera-list ba/run-camera_list.txt                    \
  --initial-transform run_align/run-inverse-transform.txt \
  --apply-initial-transform-only                          \
  -o ba_align/run

It is very important to note that we used above run-inverse-transform.txt, which goes from the stereo DEM coordinate system to the LOLA one. This is discussed in detail in Section 16.54.14. We used the latest optimized cameras in the ba directory.

It is suggested to mapproject the images using the obtained bundle-adjusted cameras in ba_align/run onto ref_dem.tif, and check for alignment errors in stereo_gui by overlaying the images using georeference information. Small errors (under 5-10 pixels) are likely fine and will be corrected at the next step.

If the images are too many, inspect at least a dozen of them. The report file introduced at the next step will help with a large number of images.

The following command can be used to quickly overlay a few dozen mapprojected images:

stereo_gui --hide-all --single-window --use-georef $(cat list.txt)

Then individual images can be toggled on and off.

11.10.10. Registration refinement

If the images mapproject reasonably well onto the reference DEM, with no shift across the board, but there are still some registration errors, one can refine the cameras using the reference terrain as a constraint in bundle adjustment (Section 12.2.1.3):

bundle_adjust                                 \
  --image-list ba_align/run-image_list.txt    \
  --camera-list ba_align/run-camera_list.txt  \
  --match-files-prefix ba/run                 \
  --max-pairwise-matches 2000                 \
  --match-first-to-last                       \
  --min-matches 1                             \
  --skip-matching                             \
  --num-iterations 100                        \
  --num-passes 2                              \
  --camera-weight 0                           \
  --save-intermediate-cameras                 \
  --heights-from-dem ref_dem.tif              \
  --heights-from-dem-uncertainty 20.0         \
  --mapproj-dem ref_dem.tif                   \
  --forced-triangulation-distance 100000      \
  --min-triangulation-angle 1e-10             \
  --remove-outliers-params "75.0 3.0 100 100" \
  --parameter-tolerance 1e-20                 \
  --threads 20                                \
  -o ba_align_ref/run

Note how we use the match files with the original ba/run prefix, and also use --skip-matching to save time by not recomputing them. But the cameras come from ba_align/run, as the ones with the ba/run prefix are before alignment. We used the CSM cameras (Section 11.6).

The option --mapproj-dem is very helpful for identifying misregistered images (see below).

The value used for --heights-from-dem-uncertainty can be larger, such as 100, if it is believed that the stereo DEM mosaic produced so far is too different from LOLA. See also Section 12.2.1.3.

The switch --save-intermediate cameras is helpful, as before, if desired to stop if things take too long.

11.10.11. Validation of registration

Mapproject the input images with the latest aligned cameras:

mapproject --tr 1.0                          \
  ref_dem.tif                                \
  image.cub                                  \
  ba_align_ref/run*image.adjusted_state.json \
  image.align.map.tif

Above, the correct camera for the given image should be picked up from the latest bundle-adjusted and aligned camera directory.

These resulting mapprojected images can be overlaid in stereo_gui with georeference information and checked for misregistration. A maximally-lit mosaic can be created with the command:

dem_mosaic --max -o max_lit.tif *.align.map.tif

Misregistered images will create ghosting in this mosaic.

Given, for example, a few hundred input images, it is very time-consuming to do pairwise inspections to find the misaligned images. Bundle adjustment created a report file with the name:

ba_align_ref/run-mapproj_match_offset_stats.txt

which greatly simplifies this job. This file shows how much each mapprojected image disagrees with the rest, in meters. See Section 16.5.11.10 for details.

Images with low count in this report can be thrown out. If the 85th percentile of registration errors for an image is over 1.5 meters (assuming a 1 meter ground resolution), it likely registered badly. Those can be deprioritized.

The more images are eliminated, the more one risks loss of coverage. It is suggested to sort the images in increasing order of 85th percentile of misregistration error, and create a few candidate sets, with each set having a different threshold for what is considered an acceptable registration error. For example, use cutoffs of 1.25 m, 1.5 m, 1.75 m.

Create the maximally lit mosaic for each of these and overlay them in stereo_gui. Inspect them carefully. Choose the set which does not sacrifice coverage and has a small amount of misregistration. Some images with a larger registration error could be added after careful inspection, to increase the coverage.

The images with a high 95th error percentile (say over 2 meters) should be overlaid on top of this maximally lit mosaic and removed if they show obvious misregistration.

See also the earlier section of validation of bundle adjustment (Section 11.10.8). That one discusses a report file that measures the errors in the pixel space rather than on the ground.

Further refinement and re-validation can be done after solving for jitter, but this is a more advanced topic (Section 11.10.22).

11.10.12. Handling failure

If the maximally lit mosaic has registration errors, most frequent causes are:

• Images were not sorted by illumination in bundle adjustment.

• There are not enough images of intermediate illumination to tie the data together.

• The interest point matches are inaccurate (locking onto moving shadows).

• The value of --overlap-limit was too small.

• Horizontal or vertical alignment failed.

Ensure that the recipe in Section 11.10 was followed carefully. Further strategies:

• See if many mapprojected images are misregistered with the DEM. If yes, bundle adjustment and/or alignment failed and needs to be redone or refined.

• Crop all mapprojected images produced with bundle-adjusted cameras to a small site, and overlay them while sorted by illumination (solar azimuth angle). See for which images the registration failure occurs.

• Inspect the match files for unprojected images (.match and clean.match) in stereo_gui (Section 16.70.9.2). Perhaps there were not enough matches or too many of them were thrown out as outliers.

• Fallback to a smaller subset of images which is self-consistent, even if losing coverage that way. Can be guided for this by the report files (Section 11.10.11, Section 11.10.8).

• See if more images can be added with intermediate illumination conditions and to increase coverage.

If a well-aligned SfS terrain is produced with a subset of the images, consider doing the same for a subset of the remaining ones. The second SfS terrain can be aligned to the first one on a clip where they both produce good results, with pc_align with correlation-based alignment (Section 16.54.3.5) and the option --initial-transform-from-hillshading translation. This alignment can be applied to the full second terrain.

Alternatively, max-lit mosaics for the subsets could be correlated (Section 16.17), and the produced disparity could be used for image (Section 16.33) and terrain alignment (Section 16.54.3.5).

If the alignment is successful, apply it to the second set of cameras as well (Section 16.54.14), and then tighten the vertical alignment for the second set with bundle_adjust with the option --heights-from-dem, as above. Then, joint SfS for the union of the two sets should work.

If no luck, break up a large site into 4 quadrants with overlap, eliminate all images not having good pixels in a given quadrant, and create a solution for each. Any match file should however have features in the full site, for reuse later.

If the resulting subsets of bundle-adjusted cameras are individually self-consistent and consistent with the ground, do a combined bundle adjustment using the union of all sets of match files, by copying them to a single directory, with --overlap-limit set to 0 to use all match files. Ensure that each match file extends over the full region in that case.

The image_align program (Section 16.33) was reported to be of help in co-registering images. Note however that failure of registration is almost surely because not all images are connected together using match points, or the images are consistent with each other but not with the ground.

Note that interest point matches produced from stereo (Section 12.2.4.2) are less sensitive to illumination changes, but that process is quite slow and does not scale for a large number of pairwise matches.

11.10.13. Running SfS in parallel

Next, SfS follows, using parallel_sfs (Section 16.51):

parallel_sfs -i ref_dem.tif                      \
  --nodes-list nodes_list.txt                    \
  --processes 6                                  \
  --threads 8                                    \
  --tile-size 200                                \
  --padding 50                                   \
  --image-list ba_align_ref/run-image_list.txt   \
  --camera-list ba_align_ref/run-camera_list.txt \
  --shadow-threshold 0.005                       \
  --use-approx-camera-models                     \
  --crop-input-images                            \
  --blending-dist 10                             \
  --min-blend-size 50                            \
  --allow-borderline-data                        \
  --smoothness-weight 0.08                       \
  --initial-dem-constraint-weight 0.0025         \
  --reflectance-type 1                           \
  --max-iterations 5                             \
  --save-sparingly                               \
  -o sfs/run

For this step not all images need to be used, just a representative enough subset. Normally, having two or three sufficiently different illumination conditions at each location is good enough, ideally with the shadows from one image being roughly perpendicular to shadows from other images.

A representative subset of the produced images can be found with the program image_subset (Section 16.36). Invoke that program with low-resolution versions of the mapprojected co-registered input images. That program’s page has more details.

SfS should work fine with a few hundred input images, but it can be slow.

It is best to avoid images with very low illumination angles as those can result in artifacts in the produced SfS terrain.

The first step that will happen, when this program is launched, is computing the image exposures, and, if applicable, the initial haze values and albedo. See the option --estimate-exposure-haze-albedo in Section 16.67 for more details.

Then the computed exposures (also haze and albedo, if applicable) are passed to each tile that is run in parallel, via --image-exposures-prefix (and, if applicable, --haze-prefix, --input-albedo). All these are further optimized per tile if --float-exposure, --float-haze, and/or --float-albedo are used.

The option --allow-borderline-data improves the level of detail close to permanently shadowed areas. See Section 11.9.1.

It was found empirically that a shadow threshold of 0.005 was good enough. It is also possible to specify individual shadow thresholds if desired, via --custom-shadow-threshold-list. This may be useful for images having diffuse shadows cast from elevated areas that are far-off. For those, the threshold may need to be raised to as much as 0.01.

The value of --initial-dem-constraint-weight may need to be increased somewhat if the resulting SfS terrain differs too much from the initial LOLA terrain, or if a tiling pattern is seen. The geodiff program (Section 16.26) can help evaluate the difference.

Use a larger --blending-dist if the produced terrain has visible artifacts around shadow regions which do not go away after increasing the shadow thresholds. To get more seamless results around small shadowed craters reduce the value of --min-blend-size. This can result in more erosion.

The option --use-approx-camera-models is not necessary with CSM cameras.

One should experiment with floating the albedo (option --float-albedo) if noticeable albedo variations are seen in the images. See Section 11.8 for a longer discussion. It is suggested to run SfS without this flag first and inspect the results.

When it comes to selecting the number of nodes to use, it is good to notice how many tiles the parallel_sfs program produces (the tool prints that), as a process will be launched for each tile. Since above it is chosen to run 5-10 processes on each node, the number of nodes can be a fraction of the number of tiles over number of processes. One should examine how much memory and CPU these processes use and adjust these numbers accordingly.

See Section 11.9.2 for a potential solution for SfS producing flat crater bottoms where there is no illumination to guide the solver. See Section 11.9.1 for a very preliminary solution for how one can try to improve very low-lit areas (it only works on manually selected clips and 1-3 images for each clip).

See an illustration of the produced terrain in Fig. 11.5.

11.10.14. Inspection and refinement

The obtained shape-from-shading terrain should be studied carefully to see if it shows any systematic shift or rotation compared to the initial LOLA gridded terrain. For that, the SfS terrain can be overlaid as a hillshaded (Section 16.28) image on top of the initial terrain in stereo_gui, in georeference mode, and the SfS terrain can be toggled on and off.

11.10.14.1. Measurement of misalignment

Misalignment can be measured quantitatively by hillshading the gridded LOLA and SfS terrain and doing stereo correlation. This goes as follows.

Hillshade both DEMs:

hillshade -e 10 ref_dem.tif -o ref_dem_hill.tif
hillshade -e 10 sfs_dem.tif -o sfs_dem_hill.tif

It is assumed as before that these two DEMs have precisely the same projection, grid size and extent. Consider adjusting the elevation (-e) parameter and also the azimuth (-a) parameter to produce well-lit images with good range of intensities that fill most of the 0 to 255 range.

Run stereo in correlator mode (Section 16.17):

parallel_stereo               \
  --correlator-mode           \
  --stereo-algorithm asp_mgm  \
  --corr-kernel 9 9           \
  --ip-per-image 40000        \
  --subpixel-mode 9           \
  --corr-search -25 -25 25 25 \
  --nodes-list nodes_list.txt \
  sfs_dem_hill.tif            \
  ref_dem_hill.tif            \
  sfs_ref_corr/run

The search range in --corr-search is determined by the expected amount of misalignment (Section 14.4.2).

Here, the SfS DEM is intentionally specified as the first input, as that is needed by subsequent logic.

The produced F.tif disparity can be split into bands while masking no-data values (Section 16.34.1.9) and viewed with stereo_gui (Section 16.70.5) as:

stereo_gui --colorbar              \
  --min -10 --max 10               \
  sfs_ref_corr/run-F_b1_nodata.tif \
  sfs_ref_corr/run-F_b2_nodata.tif

It is very important to confirm that the visually-observed shifts agree with the disparities shown by this plot.

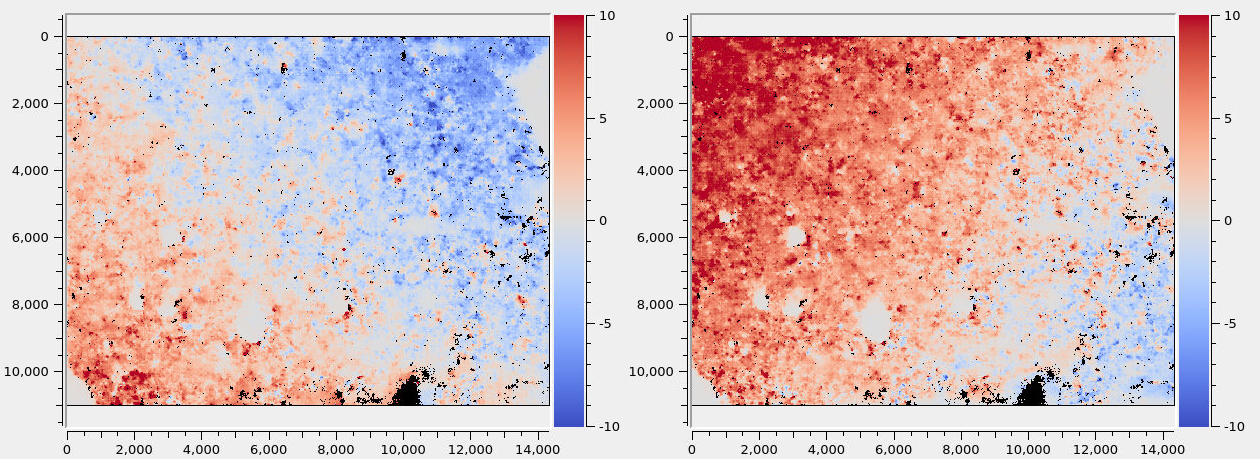

Fig. 11.6 Colorized horizontal and vertical disparities from the SfS DEM to the LOLA DEM. There exists a horizontal misalignment of 5 pixels in the upper-right corner (left plot), and a vertical misalignment of 10 pixels in the upper-left corner (right plot).

A sample plot of such disparities is shown in Fig. 11.6. It can be seen that here the misregistration is large and non-uniform. In this case, the only reliable solution for repair is to make use of custom GCP produced with dem2gcp. A simpler recipe for correcting a shift or rotation only with pc_align is shown further down.

11.10.14.2. GCP-based refinement

The dem2gcp program (Section 16.18) will take as input this disparity and move each ground point produced by triangulation of interest point matches from the “warped” location on the SfS DEM to the correct location on the LOLA DEM, forming ground control points (Section 16.5.9).

This invocation requires a build of ASP as of 2025/11 or later (Section 2.1).

dem2gcp                                            \
  --warped-dem sfs_dem.tif                         \
  --ref-dem ref_dem.tif                            \
  --warped-to-ref-disparity sfs_ref_corr/run-F.tif \
  --image-list ba_align_ref/run-image_list.txt     \
  --camera-list ba_align_ref/run-camera_list.txt   \
  --clean-match-files-prefix ba/run                \
  --max-pairwise-matches 5000                      \
  --gcp-sigma 1.0                                  \
  --max-num-gcp 2000000                            \
  --output-gcp sfs_ref_corr/run.gcp

The value of --gcp-sigma should be a fraction of the ground sample distance (in meters), to ensure that the GCP constraint is strong enough.

The resulting GCP file can be passed to bundle_adjust together with the images and latest cameras, such as in Section 11.10.10, but without a DEM constraint, as GCP provide that information. Consider using in bundle adjustment a smaller value of --max-pairwise-matches, such as 1000, to ensure the GCP dominate the solution.

Then, SfS must be rerun with the new cameras. Misalignment can be evaluated as before.

The created SfS terrain can be employed to improve the registration of any problematic images (Section 11.10.19).

11.10.14.3. Refinement based on a rigid transform

If the misalignment looks as if produced by a rigid transform, one can try alignment based on dense correlation of hillshaded images (Section 16.54.3.5). This requires that the correlation be run with the inputs in reverse order from the above, so the first input would be the reference LOLA DEM.

Alternatively, one can do sparse features-based alignment (Section 16.54.3.4). This works better on lower-resolution versions of the inputs, when the high-frequency discrepancies do not confuse the alignment, so, for example, at 1/4 or 1/8 resolution of the DEMs, as created with stereo_gui:

pc_align --initial-transform-from-hillshading rigid    \
  ref_dem_sub4.tif sfs_dem_sub4.tif -o align_sub4/run  \
  --num-iterations 0 --max-displacement -1

In either case, the alignment transform can then be applied to the full SfS DEM (Section 16.54.6):

pc_align --initial-transform align_sub4/run-transform.txt      \
  ref_dem.tif sfs_dem.tif -o align/run --num-iterations 0      \
  --max-displacement -1 --save-transformed-source-points       \
  --max-num-reference-points 1000 --max-num-source-points 1000

The number of points being used is not important since we will just apply the alignment and transform the full DEM.

The aligned SfS DEM can be created from the obtained transformed cloud as:

point2dem --tr 1 --search-radius-factor 2 --t_srs projection_str \
  align/run-trans_source.tif

Here, the projection string should be the same one as in the reference LOLA DEM named ref_dem.tif. It can be found by invoking:

gdalinfo -proj4 ref_dem.tif

and looking for the value of the PROJ field.

The alignment transform should be applied to the cameras (Section 16.54.14), then bundle adjustment with a terrain constraint should be redone as in Section 11.10.10.

Lastly, the SfS DEM must be regenerated with the new cameras.

Ideally, after all this, there should be no systematic offset between the SfS terrain and the reference LOLA terrain.

11.10.14.4. Image-based refinement

Another approach is to find the stereo disparity from the hillshaded SfS DEM to the hillshaded reference DEM (at 1/4th the resolution) with parallel_stereo --correlator-mode, then invoke image_align (Section 16.33) on the disparity. It appears that the stereo correlation works better if the first cloud is the SfS DEM, as it has more detail. This can produce an alignment transform (Section 16.33.3) that can be passed in to pc_align with zero iterations to align the SfS DEM to the reference DEM (Section 16.54.6).

11.10.14.5. Manual alignment

If these approaches fail to remove the visually noticeable displacement between the SfS and LOLA terrain, one can try to nudge the SfS terrain manually, by using pc_align as:

pc_align --initial-ned-translation                             \
  "north_shift east_shift down_shift"                          \
  ref_dem.tif sfs_dem.tif -o align/run --num-iterations 0      \
  --max-displacement -1 --save-transformed-source-points       \
  --max-num-reference-points 1000 --max-num-source-points 1000

Here, the value of down_shift should be 0, as we attempt a horizontal shift. For the others, one may try some values and observe their effect in moving the SfS terrain to the desired place.

The transform obtained by using these numbers will be saved in align/run-transform.txt (while being converted from the local North-East-Down coordinates to ECEF) and can be used to transform the cameras to bring them in closer alignment with the reference terrain.

If a manual rotation nudge is necessary, use pc_align with --initial-rotation-angle.

The transformed cloud then needs to be regridded with point2dem as before.

In all cases the SfS DEM must be regenerated with the aligned cameras.

11.10.15. Comparison with initial terrain

The geodiff tool can be deployed to see how the SfS DEM compares to the initial guess or to the raw ungridded LOLA measurements. One can use the --absolute option for this tool and then invoke colormap to colorize the difference map. By and large, the SfS DEM should not differ from the reference DEM by more than 1-2 meters.

It is also suggested to produce produce a maximally-list mosaic, as in Section 11.10.11. This should not look too different if projecting on the initial guess DEM or on the refined one created with SfS.

11.10.16. Handling issues in the SfS result

Misregistration errors between the images can result in craters or other features being duplicated in the SfS terrain. Then, registration must be redone as discussed in the earlier sections.

If in some low-light locations the SfS DEM has seams, see Section 11.10.17.

Artifacts around permanently shadowed areas can be fixed with sfs_blend (Section 16.68).

See Section 11.9.1 for how to increase the coverage in areas with very low illumination.

If the SfS DEM has localized defects, those can be fixed in a small region and then blended in. For example, a clip around the defect, perhaps of dimensions 400 pixels or larger, can be cut from the input DEM. If that clip has noise which affects the final SfS result, it can be blurred with dem_mosaic, using for example, --dem-blur-sigma 2 (or a larger sigma value). Then one can try to run parallel_sfs on just this clip, and if needed, vary some of the SfS parameters or exclude some images.

If happy enough with the result, this small SfS clip can be blended back to the larger SfS DEM with dem_mosaic as:

dem_mosaic --priority-blending-length 75         \
  small_sfs.tif large_sfs.tif -o merged_sfs.tif

Inspect the resulting hillshaded DEM to ensure this did not result in blending artifacts.

11.10.17. Fixing seams in the SfS terrain

Images with partially shadowed areas can result in seams in the SfS hillshaded DEM. The best available approach for fixing these problems starts by setting a threshold for such semi-shadowed pixels. Pixels with values between this and the shadow threshold will be given less weight, in inverse proportion to the discrepancy between the observed and simulated pixel value.

This weight can be raised to a certain power to make this attenuation effect stronger, and the resulting weight image can be blurred somewhat to reduce any discontinuities.

Pixels for which no other images have higher values at the given ground location are excluded from this process, to avoid unnecessary erosion. (However, the blur operation on the weights, per above, may still result in some erosion.)

This approach is available with a build from 2025/11 or later (Section 2.1).

This should be used only on clips that show seams, as it may cause erosion elsewhere.

To enable this approach, the option --allow-borderline-data is assumed (Section 11.9.1). Then, the following additional options are needed:

--low-light-threshold 0.03   \
--low-light-weight-power 4.0 \
--low-light-blur-sigma 3.0

The full documentation for these options is Section 16.67.

How to blend in repaired clips is discussed in Section 11.10.16.

11.10.18. Blending the SfS result with the initial terrain

After computing a satisfactory SfS DEM, it can be processed to replace the values in the permanently shadowed areas with values from the LOLA reference DEM, with a transition region.

This process will fail unless the SfS DEM and the LOLA DEM have the same grid. How to prepare the initial terrain is described in Section 11.10.2, and more details about bounds are in Section 11.10.4. A workaround is suggested later in this section.

The blending can be done as:

sfs_blend --lola-dem lola_dem.tif --sfs-dem sfs_dem.tif      \
  --max-lit-image-mosaic max_lit.tif --image-threshold 0.005 \
  --lit-blend-length 25 --shadow-blend-length 5              \
  --min-blend-size 50 --weight-blur-sigma 5                  \
  --output-dem sfs_blend.tif --output-weight sfs_weight.tif

Here, the inputs are the LOLA and SfS DEMs, the maximally lit mosaic provided as before, the shadow threshold (the same value as in invoking SfS should be used). These are expected to have precisely the same extent, projection, and resolution.

The outputs are the blended DEM as described earlier, and the weight which tells how much the SfS DEM contributed to the blended DEM. That weight equals to 1 where only the SfS DEM was used, is between 0 and 1 in the transition region between the lit and shadowed areas, which is determined by the values of the --lit-blend-length and --shadow-blend-length parameters (it grows somewhat depending on the value of --weight-blur-sigma), and is 0 where only the LOLA values contribute to the solution. The weight function is the truncated signed Euclidean distance to the lit boundary, scaled to have values between 0 and 1, then blurred with a Gaussian kernel with the above-mentioned sigma. No blending happens for shadowed regions of dimensions less than --min-blend-size, where the SfS DEM is kept. See Section 16.68 for more details.

If sfs_blend fails due to the grids not matching, it is suggested that the input LOLA terrain be prepared with gdalwarp -te <corners> as described in Section 11.10.2, and then the SfS terrain be regenerated starting with this terrain, with any desired transform applied to the cameras before parallel_sfs is rerun, and then the extent of the LOLA and SfS terrains will agree.

Or, the SfS terrain which exists so far (sfs_dem.tif), the LOLA terrain (lola_dem.tif), and the maximally lit mosaic (max_lit.tif) can all be resampled to the same grid with gdalwarp with the --te and -r cubicspline options, or with dem_mosaic --tap, before invoking sfs_blend.

11.10.19. Post-SfS registration

This section discusses how to use a produced SfS terrain to measure and repair any misregistration of input images. It is assumed that this SfS terrain is well-registered to the reference DEM (e.g., from LOLA), as validated in Section 11.10.14.

Image misregistration can arise from the fact that interest point matching can be inaccurate for images with diverse illumination conditions, as discussed in Section 11.10.12.

We make use of the observation that given a raw (measured) image and corresponding camera, a simulated image with the same view and illumination, produced with the SfS terrain, will look very similar to the raw mapprojected image, apart from some shift or rotation. This discrepancy can be measured and corrected, bringing the images in better registration with the SfS terrain.

This process is done for each image individually. The resulting improved cameras could be used to create a refined SfS terrain.

To define some notation, let sfs_dem.tif be the final SfS DEM, image.cub be the input raw image, and camera.json be the best-registered camera available for this image.

Mapproject the raw image onto the SfS DEM with this camera, producing image_map.tif:

mapproject    \
  --tr 1.0    \
  sfs_dem.tif \
  image.cub   \
  camera.json \
  image_map.tif

Create the simulated orthoimage (this requires a build from 2025/12 or later, Section 2.1):

sfs -i sfs_dem.tif              \
    --save-sim-intensity-only   \
    image.cub                   \
    camera.json                 \
    --ref-map image_map.tif     \
    -o run/image

This will write run/image-camera-sim-intensity.tif. Ensure the name of this file is unique for each input image.

Inspect the measured and simulated orthoimages. They should be very similar, apart from any misregistration. The image_align tool (Section 16.33) can find the transform that aligns the measured image to the simulated one. Note that the simulated image is the reference, and is specified first.

image_align                            \
    --ip-detect-method 0               \
    --inlier-threshold 50              \
    --ip-per-tile 2500                 \
    --ip-per-image 0                   \
    --alignment-transform translation  \
    run/image-camera-sim-intensity.tif \
    image_map.tif                      \
    --output-prefix align/run          \
    -o aligned_image.tif

This transform will be saved to a file. It will also be printed to standard output and recorded in the log file after the line Alignment transform (in pixels). It is suggested to also check the number of interest point matches inliers in the log file, as that can be a proxy for how accurate the computed transform is.

For a more complex misregistration, one can try a rigid transform. This is a bit harder to interpret.

The gcp_gen program (Section 16.24) can create ground control points (GCP, Section 16.5.9). These GCP will tie pixel locations in the original raw image to 3D locations on the SfS DEM.

gcp_gen                                              \
    --ip-detect-method 0                             \
    --inlier-threshold 50                            \
    --ip-per-image 0                                 \
    --ip-per-tile 2500                               \
    --gcp-sigma 1.0                                  \
    --camera-image image.cub                         \
    --mapproj-image image_map.tif                    \
    --ortho-image run/image-camera-sim-intensity.tif \
    --dem sfs_dem.tif                                \
    --output-prefix gcp_gen/run                      \
    -o image_gcp.gcp

A GCP sigma of 1.0 meter is reasonable if the DEM resolution is 1 m/pixel.

The newly created GCP file is used with bundle_adjust (Section 16.5) to refine the camera model for the input image.

bundle_adjust     \
    image.cub     \
    camera.json   \
    image_gcp.gcp \
    -o ba_gcp/run

This will produce an updated camera model named ba_gcp/run-image.json.

To validate the correction, mapproject the input image with the newly aligned camera:

mapproject --tr 1.0     \
  sfs_dem.tif           \
  image.cub             \
  ba_gcp/run-image.json \
  image_aligned.tif

The resulting orthoimage should show better agreement with the SfS DEM, with the simulated image, and with other similarly aligned images. This process can be repeated for all input images.

11.10.20. Creation of mask of SfS pixels

The SfS DEM used the information from images where the ground was lit, so above the shadow threshold. In the shadowed areas just the smoothness constraint and initial DEM constraint were used. To create the mask of such lit pixels, with value of 1 where lit and 0 where unlit, use the maximally-lit mosaic found earlier, and run:

thresh=0.005
image_calc -c "sign(max(var_0, $thresh) - $thresh)" \
  max_lit.tif -o sfs_mask.tif

Here, the shadow threshold used during SfS should be used, separating lit and unlit pixels.

11.10.21. SfS height uncertainty map

The error in the SfS DEM (before or after the blending with LOLA) can be estimated as:

parallel_sfs --estimate-height-errors -i sfs_dem.tif \
 -o sfs_error/run <other options as above>

Hence, this invokes parallel_sfs as in Section 11.10.13, but with the produced SfS DEM as the input DEM, and a new output directory.

See Section 16.67 describing how the estimation is implemented. See also the option --height-error-params. This uncertainty may be overly optimistic ([JBH+24], [HIK+25]).

A useful exercise can be to run SfS with two sets of images, each with diverse-enough illumination conditions, compare the produced terrain models, and see how that compares with the estimated uncertainty map.

11.10.22. Solving for jitter

If the bundle adjustment with a terrain constraint from Section 11.10.10 produced well-registered images, as validated in Section 11.10.11, but some jitter is seen in the triangulation error of pairwise stereo DEMs in Section 11.10.9, the adventurous user may try to see if the cameras can be further refined by solving for jitter (Section 16.39).

At this stage the images should already be well-aligned with the reference DEM. We will take the last batch of optimized cameras stored in ba_align_ref from Section 11.10.10, and run the jitter command as:

jitter_solve                                     \
  --image-list ba_align_ref/run-image_list.txt   \
  --camera-list ba_align_ref/run-camera_list.txt \
  --num-lines-per-position 500                   \
  --num-lines-per-orientation 500                \
  --match-files-prefix ba/run                    \
  --max-pairwise-matches 10000                   \
  --match-first-to-last                          \
  --min-matches 1                                \
  --forced-triangulation-distance 100000         \
  --min-triangulation-angle 1e-10                \
  --num-iterations 50                            \
  --num-passes 2                                 \
  --max-initial-reprojection-error 50            \
  --overlap-limit 10000                          \
  --parameter-tolerance 1e-20                    \
  --heights-from-dem ref_dem.tif                 \
  --heights-from-dem-uncertainty 20.0            \
  --anchor-dem ref_dem.tif                       \
  --num-anchor-points-per-tile 50                \
  --num-anchor-points-extra-lines 2000           \
  --anchor-weight 0.05                           \
  --mapproj-dem ref_dem.tif                      \
  --threads 20                                   \
  -o jitter_align_ref/run

It is important to compare this with the bundle adjustment command in Section 11.10.10.

We used a lot more pairwise matches, as jitter is a finer-grained operation. We went back to the full set of matches in ba, before outlier filtering and before selecting a subset of them. This may potentially consume a lot of memory and take a lot of time. The number of matches can be reduced in those cases.

We assume the cameras in ba_align_ref are in CSM format, with the adjustments and alignment already applied to them.

The option --mapproj-dem will result, as before, in a report file, named:

jitter_align_ref/run-mapproj_match_offset_stats.txt

that can be compared with the one from bundle adjustment. Hopefully the median registration errors go down somewhat.

The validation can proceed as earlier, in Section 11.10.11.

Stereo DEMs can be produced with the updated cameras and compared to the earlier ones.

11.11. Insights for getting the most of SfS

Here are a few suggestions we have found helpful when running sfs:

• First determine the appropriate smoothing weight \(\mu\) by running a small clip, and using just one image. A value between 0.06 and 0.12 seems to work all the time with LRO NAC, even when the images are subsampled. The other weight, \(\lambda\), that is, the value of --initial-dem-constraint-weight, can be set to something small, like \(0.001.\) This can be increased to \(0.002\) if noticing that the output DEM strays too far.

• Having images with diverse illumination conditions results in a more accurate terrain.

• Floating the albedo (option --float-albedo) can introduce instability and divergence, unless the images have very diverse illumination. See Section 11.8 for a longer discussion.

• Floating the exposures was useful for the Earth and Mars examples, but less so for the Moon.
